- Google provides Visualization API to draw charts and other components.
- More Details can be found on :-
https://developers.google.com/chart/interactive/docs/
- Different type of ready to use chart types are exposed a java script classes to the developers for customize.
- In this Demo, “We will see how a visualization charts get rendered in browser for a JSON data response from a Servlet”.
- Project Structure,
- The java servlet uses GSON API jar library for converting a array list of student data to its JSON representation.
StudentJsonDataServlet.java code below,
package com.sandeep.visual.servlet;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.google.gson.Gson;
import com.sandeep.visual.data.Student;
@WebServlet("/StudentJsonDataServlet")
public class StudentJsonDataServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
public StudentJsonDataServlet() {
super();
}
protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {
List<Student> listOfStudent = getStudentData();
Gson gson = new Gson();
String jsonString = gson.toJson(listOfStudent);
response.setContentType("application/json");
response.getWriter().write(jsonString);
}
private List<Student> getStudentData() {
List<Student> listOfStudent = new ArrayList<Student>();
Student s1 = new Student();
s1.setName("Sandeep");
s1.setComputerMark(75);
s1.setMathematicsMark(26);
listOfStudent.add(s1);
Student s2 = new Student();
s2.setName("Bapi");
s2.setComputerMark(60);
s2.setMathematicsMark(63);
listOfStudent.add(s2);
Student s3 = new Student();
s3.setName("Raja");
s3.setComputerMark(40);
s3.setMathematicsMark(45);
listOfStudent.add(s3);
Student s4 = new Student();
s4.setName("Sonu");
s4.setMathematicsMark(29);
s4.setComputerMark(78);
listOfStudent.add(s4);
return listOfStudent;
}
}
- The JSON response data format is as below,
- The HTML markup is present in visualization-chart-demo.html file,
<html>
<head>
<title>Google Visualization Chart Demo</title>
</head>
<body>
<div id="student-bar-chart"></div>
<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.9.1/jquery.min.js"></script>
<script type="text/javascript" src="https://www.google.com/jsapi"></script>
<script type="text/javascript" src="./js/visualization-chart-script.js"></script>
</body>
</html>
- The above html has a “DIV#student-bar-chart” html element for bar chart container.It calls JQUERY and JSAPI library from Google hosted CDN.Finally it calls our script code present in
visualization-chart-script.js file.
var TUTORIAL_SAVVY = {
/*return google visualization data*/
getvisualizationData: function (jsonData) {
var point1, point2, dataArray = [],
data = new google.visualization.DataTable();
data.addColumn('string', 'Name');
data.addColumn('number', 'Marks in Mathematics');
data.addColumn({
type: 'string',
role: 'tooltip',
'p': {
'html': true
}
});
data.addColumn('number', 'Marks In Computer');
data.addColumn({
type: 'string',
role: 'tooltip',
'p': {
'html': true
}
});
/* for loop code for changing inputdata to 'data' of type google.visualization.DataTable*/
$.each(jsonData, function (i, obj) {
point1 = "Math : " + obj.mathematicsMark + "";
point2 = "Computer : " + obj.computerMark + "";
dataArray.push([obj.name, obj.mathematicsMark, TUTORIAL_SAVVY.returnTooltip(point1, point2), obj.computerMark, TUTORIAL_SAVVY.returnTooltip(point1, point2)]);
});
data.addRows(dataArray);
return data;
},
/*return options for bar chart: these options are for various configuration of chart*/
getOptionForBarchart: function () {
var options = {
animation: {
duration: 2000,
easing: 'out'
},
hAxis: {
baselineColor: '#ccc'
},
vAxis: {
baselineColor: '#ccc',
gridlineColor: '#fff'
},
isStacked: true,
height: 400,
backgroundColor: '#fff',
colors: ["#68130E", "#c65533"],
fontName: 'roboto',
fontSize: 12,
legend: {
position: 'top',
alignment: 'end',
textStyle: {
color: '#b3b8bc',
fontName: 'roboto',
fontSize: 12
}
},
tooltip: {
isHtml: true,
showColorCode: true,
isStacked: true
}
};
return options;
},
/*Draws a Bar chart*/
drawBarChart: function (inputdata) {
var barOptions = TUTORIAL_SAVVY.getOptionForBarchart(),
data = TUTORIAL_SAVVY.getvisualizationData(inputdata),
chart = new google.visualization.ColumnChart(document.getElementById('student-bar-chart'));
chart.draw(data, barOptions);
/*for redrawing the bar chart on window resize*/
$(window).resize(function () {
chart.draw(data, barOptions);
});
},
/* Returns a custom HTML tooltip for Visualization chart*/
returnTooltip: function (dataPoint1, dataPoint2) {
return "<div style='height:30px;width:150px;font:12px,roboto;padding:15px 5px 5px 5px;border-radius:3px;'>" +
"<span style='color:#68130E;font:12px,roboto;padding-right:20px;'>" + dataPoint1 + "</span>" +
"<span style='color:#c65533;font:12px,roboto;'>" + dataPoint2 + "</span></div>";
},
/*Makes ajax call to servlet and download data */
getStudentData: function () {
$.ajax({
url: "StudentJsonDataServlet",
dataType: "JSON",
success: function (data) {
TUTORIAL_SAVVY.drawBarChart(data);
}
});
}
};
google.load("visualization", "1", {
packages: ["corechart"] });
$(document).ready(function () {
TUTORIAL_SAVVY.getStudentData();
});
- The above javascript has following function with its purpose:-
getStudentData() —– On DOM ready it makes an AJAX call and download the Student data.
drawBarChart()—— On SUCCESS of AJAX call this method get called.
getOptionForBarchart()—–Return the CONFIGURATION for bar chart.
getvisualizationData()——Formats the JSON data to Google Visualization Data format.
returnTooltip()——-Returns the HTML string for CUSTOM tooltip.

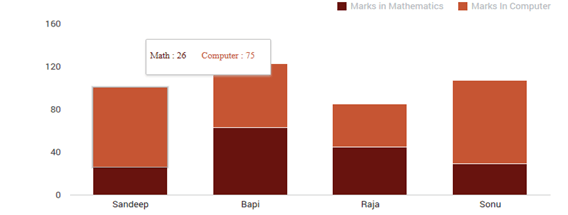

- The output bar chart :-
- Download Link for the Demo project:-
